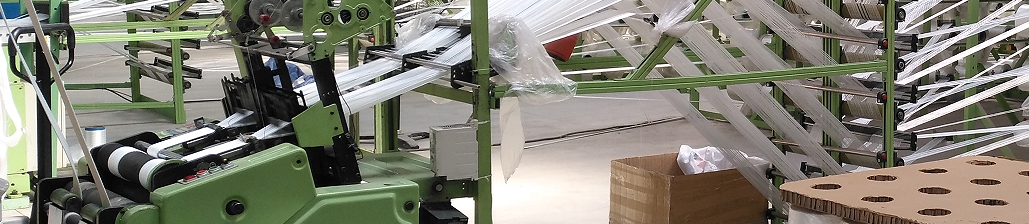

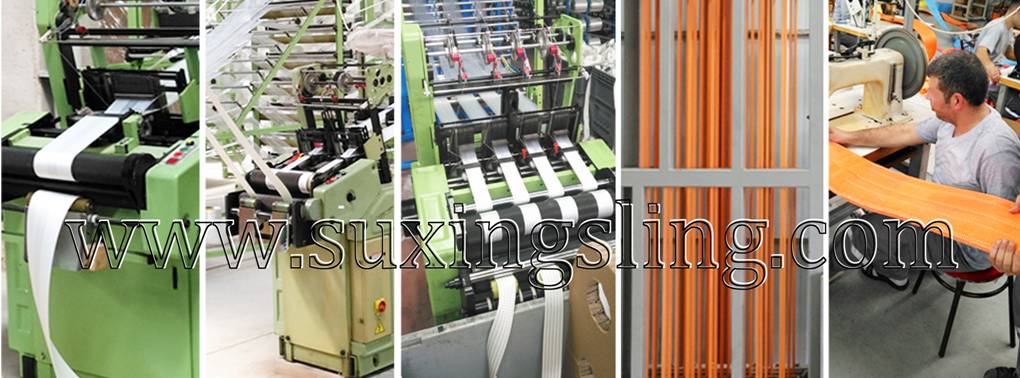

+...Heavy-duty needle
loom
.
|
|
1/320 & 1/200
|
This is heavy
sling loom machine with rotary bobbin lock edge system.
Working
video: Fabric width 190mm Fabric width 300mm.
Narrow fabrics woven by this 1/320 & 1/200
heavy sling loom machine have identical edges on 2 sides, these 2 sides
definitely cannot be disassembled by hand, and have extremely strong wear
resistance. The fabric is thick, heavy, and wide.
This 1/320 & 1/200 heavy
sling loom machine is a very special narrow fabric weaving machinery used
for weaving military belts, industrial lifting belts, traction belts,
high-altitude work safety belts, and other special purpose narrow
fabrics.
This 1/320 & 1/200 heavy
sling loom machine use small rotary bobbin lock edge system, instead of
knitting needle lock edge. The edge of the sling is very sturdy,
durable, and difficult to damage, and has long life. But if the edge is
knitted by needle, its overlock thread is
easily worn off, the whole webbing sling will unravel rapidly when overlock thread breaks, can not be used again. Please see
video here.
The weft density and machine
speed are controlled by different frequency converters.
To adapt to the weaving of
heavy fabrics, the machine adopts a combination of groove CAM and double roll winding. The overall
performance of the machine is stable and reliable, and it can operate continuously
for many years without spare parts.
|
|
|
|
With rotary bobbin lock edge system.
Tape qty. : 1.
The same 2 edges.
Reed width: 320mm.
Max. tape width: 300mm.
Heald frame qty: 12pcs.
CAM 12pcs.
Shedding lever: 12pcs.
Double inverters.
Double rolls winding.
.
|
|
|
|
With rotary bobbin lock edge system.
Tape qty. : 1.
The same 2 edges.
Reed width: 200mm.
Max. tape width: 190mm.
Heald frame qty: 10pcs.
CAM 10pcs.
Shedding lever: 10pcs.
Double inverters.
Double rolls winding.
.
|
|
1/160
|
. Heavy-duty needle
loom
.
|
Tape qty. : 1.
Reed width: 160mm.
Max. tape width: 150mm.
Heald frame qty: 10pcs.
Machine speed:300-400rpm.
Big opening, double shedding levers.
CAM 20pcs.
Power:2.2kw.
|
|
1/220
|
. Heavy-duty needle
loom
.
|
Tape qty. : 1.
Reed width: 220mm.
Max. tape width: 200mm.
Heald frame qty: 10pcs.
Machine speed:200-230rpm.
Big opening, double shedding levers.
CAM 20pcs.
Power:2.2kw.
.
。
|
|
2/110
|
. Heavy-duty needle
loom
.
|
Tape qty. : 2.
Reed width: 110mm.
Max. tape width: 100mm.
Heald frame qty: 10pcs.
Machine speed:600-800rpm.
Big opening, double shedding levers.
CAM 20pcs.
Power:2.2kw.
.
..
|
|
4/65
|
. Heavy-duty needle
loom
.
|
Tape qty. : 4.
Reed width: 65mm.
Max. tape width: 55mm.
Heald frame qty: 10pcs.
Machine speed:600-800rpm.
Big opening, double shedding levers.
CAM 20pcs.
Power:2.2kw.
.
.
|
|
|
|
|
|
+ Yarn bobbin creel
|
|
.
.
.
.
.
|
.Yarn bobbin creel
.
|
.
As per customer’s demand.
|
|
+. Yarn tension adjustment rack
|
|
|
Yarn tension
adjustment rack.
.
|
.
As per customer’s demand.
|
|
+ . .Continuous webbing lifting sling dyeing machine
|
|
|
.
.Continuous webbing lifting sling dyeing
machine
|
Working width 400mm.
Belt qty.: 1-4 pcs.
Speed: 0-21m/min./pc.
Waste hot air recycle function.
Oiling bearing once each 6 months.
When sling belt width 300mm, total length can
be extended to 101-102% after dyed.
.
|
|
+...Webbing
lifting sling sewing machine
|
|
|
.…
733
………….
…………
………….
………….
|
.
. Webbing
lifting sling sewing machine
|
.
Max. sewing speed: 600RPM.
Stitch length: 0-15mm.
Presser foot lift:
by hand: 29mm,
by knee: 32mm, 36mm, 42mm.
Shuttle hook: SMx1000 28#.
Needle size: KSP7-31.
Lubrication mode: by manual.
Motor: 550W Clutch motor 1400RPM.
Operating space: 204x412mm (HxW).
.
|
|
1850
|
.
Webbing lifting sling sewing machine
.
|
Sewing Speed: 1000-1200needles/min.
Stitch length: 0-14mm.
Presser foot lift: 16mm.
Needle system: BDx1.
Operating room: 200x420mm
(HxW).
.
|
|
..204-420
|
.
Webbing lifting sling sewing machine
|
Max.sewing speed: 800RPM.
Stitch length: 12mm.
Presser foot lift: by hand:14mm, by knee : 20mm.
Shuttle hook : KSP-204N.
Needle size: DY*3(27#).
Lubrication mode: by manual.
Need bar stroke: 56mm.
Operating space: 185x420mm (HxW).
|
|
……….204-762
long arm
.
|
|
|
.
Webbing lifting sling sewing machine
.
|
Max. sewing speed: 800 needles/min.
Stitch length: 12mm.
Presser foot lift: by hand 14mm, by knee 20mm.
Shuttle hook: KSP-204N.
Needle size DY*3(27#).
Lubrication mode: by manual.
Need bar stroke: 56mm.
Operating space: 185mmx762mm (HxW).
|
|
……….733-762
long arm
.
|
|
|
. Webbing
lifting sling sewing machine
.
|
Max. sewing speed: 700RPM.
Stitch length: 0-13mm.
Presser foot lift: by hand 25mm, by knee 32-38mm.
Shuttle hook: semi-rotary large shuttle.
Needle size: SMx1000 28#.
Lubrication mode: Manual.
Motor: 550W Clutch motor 1400RPM.
Needle bar stroke: 75mm.
Operating space: 250mmx762mm (HxW).
|
|
+... Webbing lifting sling automatic
pattern sewing machine
|
|
5020
…………. `
|
.
.Webbing lifting sling automatic pattern
sewing machine
.
|
.
Sewing range: 500x200mm.
Sewing speed: 800rpm (Needle distance <5mm).
Needle distance: 1-12mm.
Needle bar stroke: 56mm.
Height of outer preess foot: 22mm.
Type of needle: DYx3.
Swinging shuttle: KSP-204N.
|
|
.3020
|
. Webbing lifting sling automatic pattern
sewing machine
|
Sewing range: 300x200mm.
Sewing speed: 800RPM (Needle distance <5mm).
Needle distance: 1-12mm.
Needle bar stroke: 56mm.
Height of outer press foot: 22mm.
Type of needle: DYx3.
Swinging shuttle:KSP-204N.
|
|
+...Automatic
round sling making machine
|
|
|
.
Finished product:
Automatic round
sling making machine
|
.
Broken strength/Recommended perimeter:
…….75T/12m, …….100T/12m, …….150T/12m,
…..200T/20m, …….250T/25m, …….300T/30m,
1pc or 2pcs at
the same time.
……400T/30m,
……500T/40m,
1pc at the same
time only.
……………………………………………………………………………………..
as per customer's demand,
larger strength can be made.
|
|
+...Automatic webbing lifting sling rolling-cutting machine
.
|
|
|
.
.Automatic webbing lifting sling rolling-cutting
machine
.
|
.
As per customer’s demand.
We can provide:
……..double layers rolling & cutting machine,
……..single layer rolling & cutting machine.
|
|
+...Automatic
webbing lifting sling
rolling-cutting-binding machine
|
|
|
.
Finished product:
.sling rolling-cutting-bunding machine
.
|
.
As per customer’s demand.
|
|
+...Automatic webbing lifting sling cutting machine
.
|
|
|
.
.sling
rolling-cutting-bunding machine
.
|
.
As per customer’s demand.
|
|
+...Automatic
double hooks making & welding machine
|
|
|
.
Finished products:
.
.
|
.
Main motor:11Kw.
Power of wire feeding motor: 4.3Kw.
Power voltage: 380V.
Wire diameter range: 6-12mm.
Maximum pessure: 20Mpa.
Working pressure: 11-12Mpa.
Production speed: around 10pcs/min.
Maximum length: 280mm.
Cooling: air cooling.
|
|
+...Ratchet
buckles & producing line
|
|
.
|
|
|
.
.
|
.
Download Buckle.zip
please.
|
|
+...Twisting
machine for sewing thread
|
|
|
.
.
.
|
.
Applied yarns: PA, PET, BCF, Artificial yarn, etc.
Spindles qty: 24 spindles (3 sections).
Twisting range:20-200T/m.
Winding traverse: 260mm,
300mm.
Twisting direction: S or Z.
Spindle speed: 10000r/m.
Denier range: 1000-5000D.
Speed of yarn: 150-200m/min.
|
|
+... Webbing lifting sling strength
testing machine
.
|
|
|
.
.
.
|
.
As per customer’s demand.
|
|
+... Air splicer
.
|
|
|
 .
.
.
|
It is applicable to
polyester, glass fibre, wool, carbon fibre.
Yarn count range: Max.
10,000D.
Air pressure: 0.7-0.8Mpa (7-8kg, depends on type of
yarn),
Adjustment of splicing
length: by adjusting the “L" indicator, the yarn overlapping length
can be changed. As long as the strength of joint is satisfied, the shorter
the overlapping length , the better for the look
of yarn (the smaller, the scale, the shorter, the overlapping length,
otherwise longer).
Adjustment of splicing
cycle: the change of splicing duration is made by adjusting the indicator
"T” (the smaller, the scale, the shorter, the
time, otherwise longer).
|
|
|
|
Working
video here, please.
.
|
|
+ Screw air compressor
|
|
|
|
|
|
Permanent magnet variable
frequency air compressor,1 set.
Exhaust volume: 1.7m³/ Min.
Power: 11kw.
Pressure: 0.8Mpa.
Power supply: 380V/50Hz.
Size 1050 x750 x1000mm.
Freezing dryer, 1 set.
Processing air volume: 2m³/ Min.
Power supply: 220v/50Hz.
External dimensions:
700x390x650mm.
Gas storage tank capacity, 1
set.
0.6m3/0.8Mpa
|
|
.
|
|
|
.
|
|
|
.
|
|
